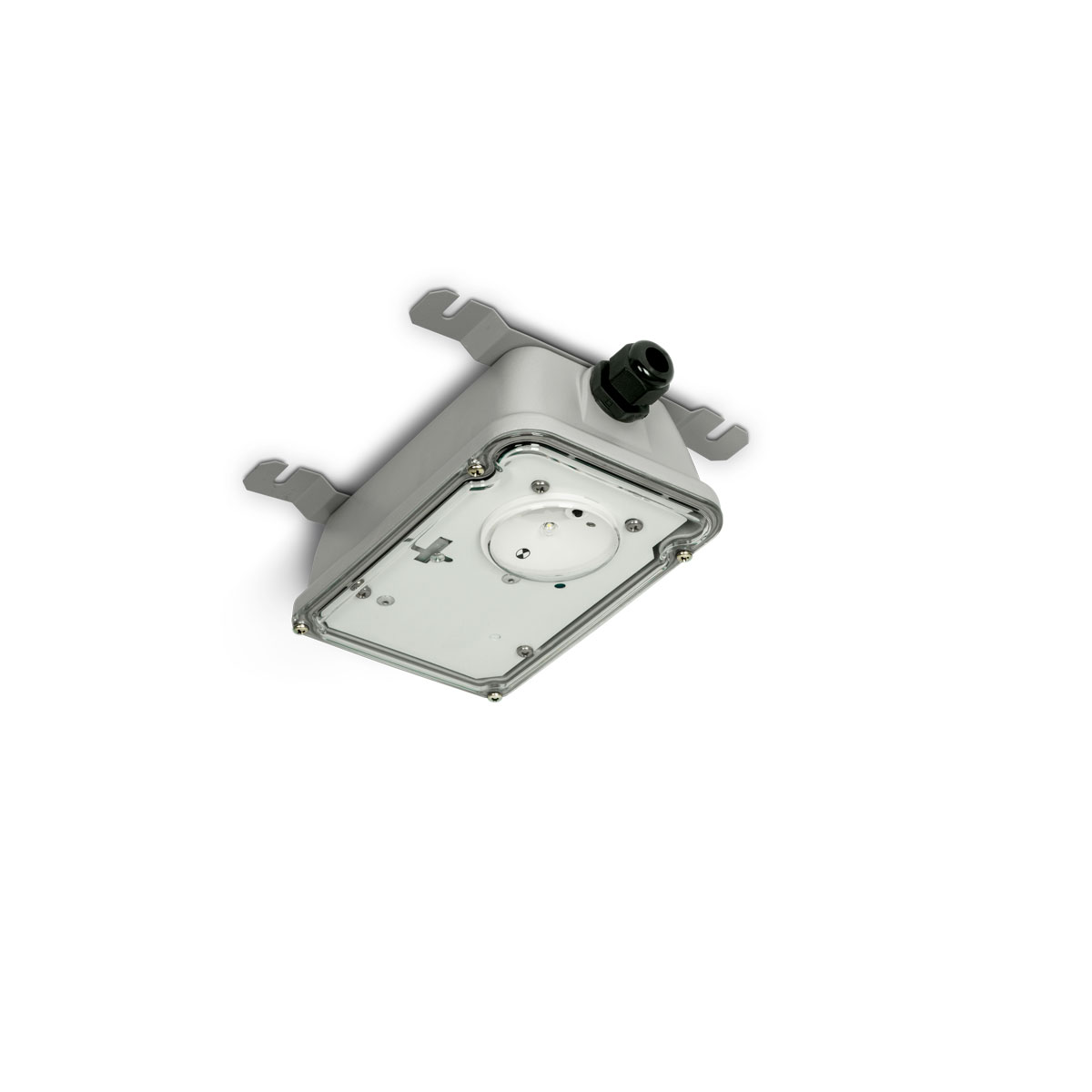

Pathfinder Weatherproof Emergency Light Gen2
PRODUCT FEATURES
- Rated life: L70 B10 50000hrs
- Driver: Integral, Non-Dim
- Rating: IP66, IK10, Class I
- Operating temperature: 0°C to +50°C
- Housing: Die-cast aluminium, Removable gear tray
- Finishing: Grey, Powder coated
- Diffuser/Lens: Polycarbonate (PC), Clear
- Connection: 1.5m flying lead
- Accessory: Complete with surface mount brackets
- Emergency: Non-Maintained, DALI emergency (self-test if not connected to DALI), Replaceable lithium
- Compliant: AS/NZS 2293, D63 emergency classification
- Warranty: 5 years on fixture and lamp, 4 years on battery
APPLICATIONS
Surface mounted (ceiling), Internal/ExternalTrain stations, Carparks, Correctional facilities, Fire passages, Warehouses
PATHFINDER W/PROOF D63 4W NON MAINT DALI EMERG
CODE: PFDLED-RL2-WPLine Current (A)
0.03A
Electrical Rating
Class 1
Dimensions
L178 x W121 x H70 mm
Luminaire Colour
Grey
Luminaire
Aluminium
Installation Type
Surface Mounted
Emergency Testing System
DALI
Battery Voltage
9.6V
Battery Cell Capacity
1500mA
Emergency Mode Wattage
4W
Emergency Mode Lumen
470lm
