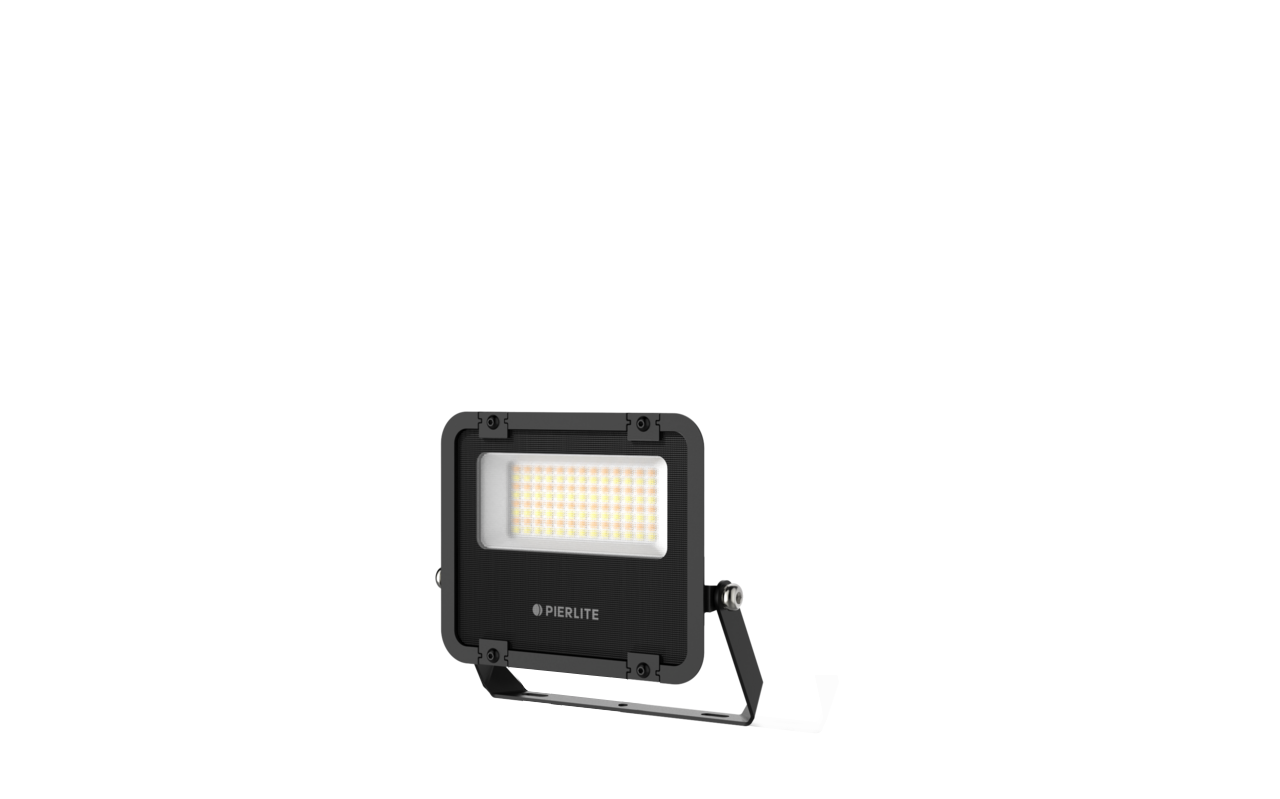

Shadow Floodlight Gen3
PRODUCT FEATURES
- • Lumen maintenance: L70 54,000hrs
- • LED: Colour Select 3000K/4000K/5000K, CRI80, 6SDCM
- • Beam angle: Symmetrical, 110°
- • Driver: Integral, Lumen Select 15/30W, Fixed Output 50W, Non dimmable
- • Surge protection: 4kV/6kA
- • Rating: IP65, IK08, Class I
- • Operating temperature: -25°C to +40°C
- • Housing: Slimline chromated LM6 marine grade aluminum
- • Finishing: Black RAL7021, Powder coated
- • Diffuser/Lens: opaque low glare glass
- • Connection: 1m flex
- • Accessory: Complete with corner mount bracket
- • Warranty: 5 year
APPLICATIONS
Surface mounted (ceiling/wall), ExternalResidential, Light commercial
SHADOW FLOODLIGHT 15W/30W COLOUR SELECT 3000K/4000K/5000K GEN3
CODE: SHAD30CSLSG3System Power (W)
30W
Lumen Output
4050lm
Lumens per Watt
135lm/W
Color Temperature
4000K
Inrush Current (A)
25.6A
Inrush Current Duration (µs)
310μs
Line Current (A)
0.14A
Earth Leakage (mA)
0.35mA
Dimensions
L168 x W178 x H37 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Surface Mounted
SHADOW FLOODLIGHT 50W COLOUR SELECT 3000K/4000K/5000K GEN3
CODE: SHAD50CSG3System Power (W)
50W
Lumen Output
6600lm
Lumens per Watt
132lm/W
Color Temperature
4000K
Inrush Current (A)
41.6A
Inrush Current Duration (µs)
290μs
Line Current (A)
0.21A
Earth Leakage (mA)
0.35mA
Dimensions
L205 x W223 x H36 mm
Luminaire Colour
Black
Luminaire
Aluminium
Installation Type
Surface Mounted
